Marathon Motors Closed-Coupled Pump Motor, U353, 20HP, 200V, 1800RPM, 3PH, 256JM FR, TEFC

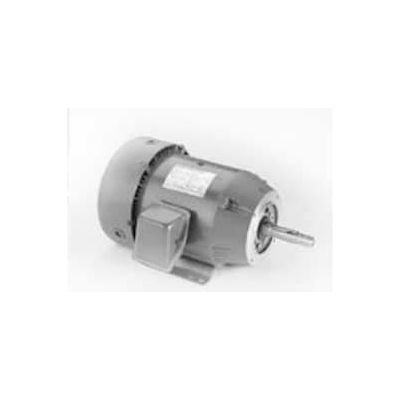

Actual product may differ from image shown

Marathon Motors Closed-Coupled Pump Motor, U353, 20HP, 200V, 1800RPM, 3PH, 256JM FR, TEFC

Item #: WBB869783

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $1,652.00

Quantity

Customers Also Viewed

Marathon Motors Closed-Coupled Pump Motor, U353, 20HP, 200V, 1800RPM, 3PH, 256JM FR, TEFC

Marathon's pump line of motors includes single or three phase jet pump motors, square flange motors, close-coupled pump motors, and P-Base vertical solid shaft pump motors. The motors are stocked in totally enclosed fan cooled, open drip proof, and many explosion Proof Motors.

  • HORSEPOWER 20
  • ENCLOSURE TEFC
  • FRAME 256JM
  • BRAND Marathon Motors
  • MOUNTING C-Face Rigid
  • MOTOR RPM 60Hz 1800
  • RPM 1800
  • PHASE 3
  • VOLTAGE 200
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • ENCLOSURE TYPE Totally Enclosed
  • OPPOSITE END BEARING 6207
  • WEIGHT 321 (145.91 kg)
  • UL Recognized Construction
  • CSA Y
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER U353
  • RPM RANGE 1701-1800
  • INSULATION CLASS F
  • FL AMPS 58.7
  • OPPOSITE END BEARING SIZE 6207
  • DRIVE END BEARING SIZE 6309
  • ASSEMBLY F1 Only
  • BEARING-DRIVE-END 6309
  • ORIENTATION Horizontal
  • IP CODE 43
  • STARTING TYPE Across the Line
  • NEMA DESIGN B
  • FL EFFICIENCY 91
  • is_motor Yes
  • KVA-CODE G
  • 60 HERTZ kW 14.92
  • 60 HERTZ RPMS 1800
  • MODEL NUMBER 256TTFL4036
