Marathon Motors Centrifugal Pump Motor, K550, 1/2HP, 208-230/460V, 1800RPM, 3PH, 56J FR, TEFC

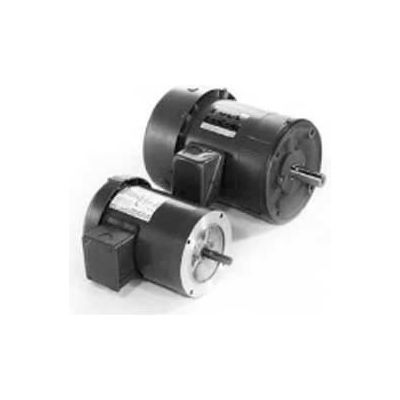

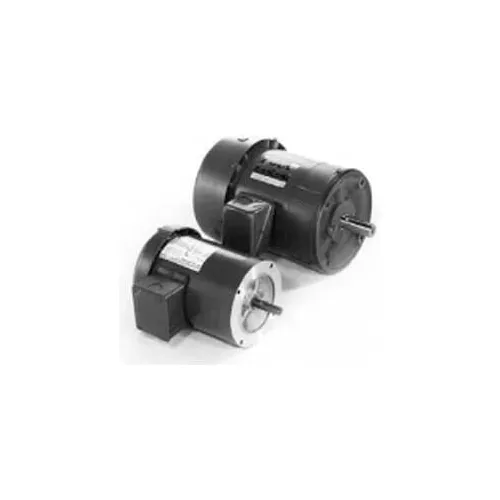

Actual product may differ from image shown

Marathon Motors Centrifugal Pump Motor, K550, 1/2HP, 208-230/460V, 1800RPM, 3PH, 56J FR, TEFC

Item #: WBB868751

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $553.00

Quantity

Customers Also Viewed

Marathon Motors Centrifugal Pump Motor, K550, 1/2HP, 208-230/460V, 1800RPM, 3PH, 56J FR, TEFC

Marathon's pump line of motors includes single or three phase jet pump motors, square flange motors, close-coupled pump motors, and P-Base vertical solid shaft pump motors. The motors are stocked in totally enclosed fan cooled, open drip proof, and many explosion Proof Motors.

  • HORSEPOWER 1/2
  • ENCLOSURE TEFC
  • FRAME 56J
  • BRAND Marathon Motors
  • MOUNTING C-Face Footless
  • MOTOR RPM 60Hz 1800
  • RPM 1800
  • PHASE 3
  • VOLTAGE 208-230/460
  • SERVICE FACTOR 1
  • AMBIENT TEMP C 40
  • ENCLOSURE TYPE Totally Enclosed
  • OPPOSITE END BEARING 6203
  • WEIGHT 22 (10 kg)
  • UL Y
  • CSA Y
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER K550
  • RPM RANGE 1701-1800
  • INSULATION CLASS B
  • FL AMPS 2.3-2.2/1.1
  • OPPOSITE END BEARING SIZE 6203
  • DRIVE END BEARING SIZE 6203
  • ORIENTATION Horizontal or Vertical
  • BEARING-DRIVE-END 6203
  • STARTING TYPE Squirrel Cage Induction
  • NEMA DESIGN B
  • FL EFFICIENCY 0
  • is_motor Yes
  • KVA-CODE K
  • 60 HERTZ RPMS 1800
  • MODEL NUMBER 5K42HN4133
