Marathon Motors Centrifugal Pump Motor, J050, 1HP, 208-230/460V, 3600RPM, 3PH, 56J FR, DP

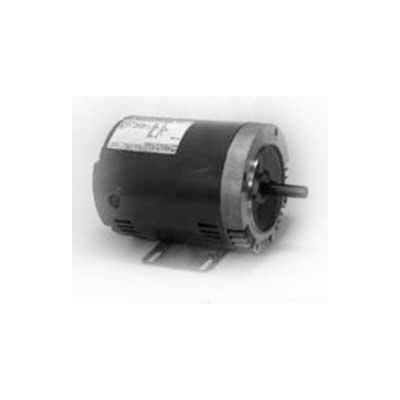

Actual product may differ from image shown

Marathon Motors Centrifugal Pump Motor, J050, 1HP, 208-230/460V, 3600RPM, 3PH, 56J FR, DP

Item #: WBB868792

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $372.95

Quantity

Customers Also Viewed

Marathon Motors Centrifugal Pump Motor, J050, 1HP, 208-230/460V, 3600RPM, 3PH, 56J FR, DP

Marathon's pump line of motors includes single or three phase jet pump motors, square flange motors, close-coupled pump motors, and P-Base vertical solid shaft pump motors. The motors are stocked in totally enclosed fan cooled, open drip proof, and many explosion Proof Motors.

  • HORSEPOWER 1
  • ENCLOSURE DP
  • FRAME 56J
  • BRAND Marathon Motors
  • MOUNTING C-Face Rigid
  • MOTOR RPM 60Hz 3600
  • MOTOR RPM 50Hz 3000
  • RPM 3600/3000
  • PHASE 3
  • VOLTAGE 208-230/460
  • SERVICE FACTOR 1.4
  • AMBIENT TEMP C 40
  • ENCLOSURE TYPE Open/Drip Proof
  • OPPOSITE END BEARING 6203
  • WEIGHT 23 (10.45 kg)
  • UL Recognized Construction
  • CSA Y
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER J050
  • RPM RANGE 3001-3600
  • INSULATION CLASS B
  • FL AMPS 3.7-3.7/1.85
  • OPPOSITE END BEARING SIZE 6203
  • DRIVE END BEARING SIZE 6203
  • ASSEMBLY F1 Only
  • ORIENTATION Horizontal
  • BEARING-DRIVE-END 6203
  • IP CODE 22
  • STARTING TYPE Across the Line
  • NEMA DESIGN B
  • 50 Hertz kW 0.56
  • 50 Hertz HP 3/4
  • 50 Hertz SF 1.4
  • 50 Hertz FL Amps 3.4/1.7
  • 50 Hertz Voltage 190/380
  • is_motor Yes
  • KVA-CODE M
  • 60 HERTZ kW 0.75
  • 60 HERTZ RPMS 3600
  • MODEL NUMBER 56T34D5366
