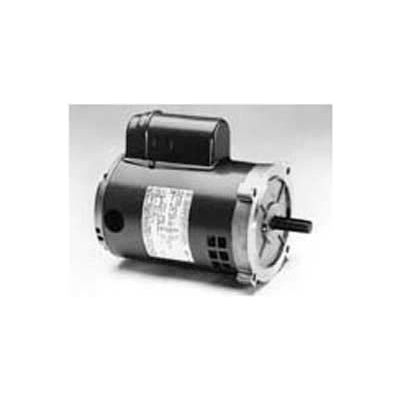

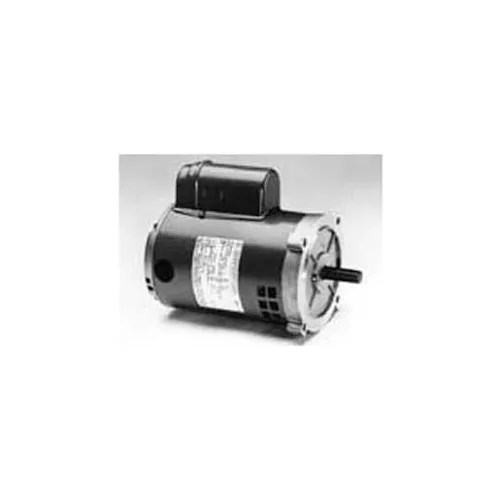

Marathon Motors Centrifugal Pump Motor, C333, 3/4HP, 115/230V, 3600RPM, 1PH, 56J FR, DP
Marathon's pump line of motors includes single or three phase jet pump motors, square flange motors, close-coupled pump motors, and P-Base vertical solid shaft pump motors. The motors are stocked in totally enclosed fan cooled, open drip proof, and many explosion Proof Motors.
Marathon's pump line of motors includes single or three phase jet pump motors, square flange motors, close-coupled pump motors, and P-Base vertical solid shaft pump motors. The motors are stocked in totally enclosed fan cooled, open drip proof, and many explosion Proof Motors.
- HORSEPOWER 3/4
- ENCLOSURE DP
- FRAME 56J
- BRAND Marathon Motors
- MOUNTING C-Face Footless
- MOTOR RPM 60Hz 3600
- RPM 3600
- PHASE 1
- VOLTAGE 115/230
- SERVICE FACTOR 1.5
- THERMAL PROTECTION Automatic
- AMBIENT TEMP C 40
- ROTATION CW
- ENCLOSURE TYPE Open/Drip Proof
- OPPOSITE END BEARING 6203
- WEIGHT 18 (8.18 kg)
- UL Y
- CSA Y
- DUTY Continuous
- MANUFACTURERS PART NUMBER C333
- RPM RANGE 3001-3600
- INSULATION CLASS B
- FL AMPS 11.2/5.3-5.6
- OPPOSITE END BEARING SIZE 6203
- DRIVE END BEARING SIZE 6203
- BEARING-DRIVE-END 6203
- ORIENTATION Horizontal or Vertical
- STARTING TYPE Switch and Mech
- FL EFFICIENCY 0
- is_motor Yes
- KVA-CODE M
- 60 HERTZ RPMS 3600
- MODEL NUMBER 5KC39QN3219X
