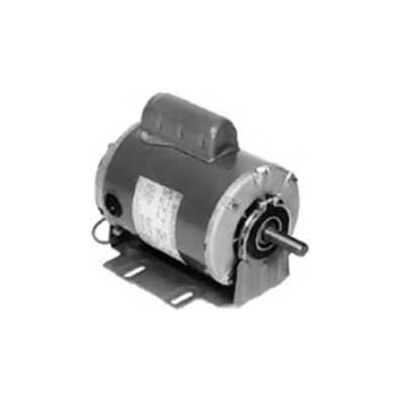

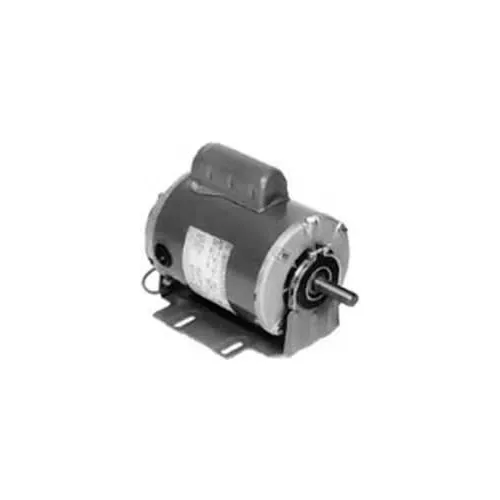

Actual product may differ from image shown
Price: $304.95
Customers Also Viewed
Marathon's Single Phase extensive line of General Purpose motors are available in ODP and TEFC construction, Foot Mounted and Footless. Horsepower sizes available from stock range from 1/12 HP through 15 HP.
Weights & Dimensions
- Weight 31
- Drive End Bearing Size 6203
- Shaft Diameter 5/8
- Opposite End Bearing Size 6203
Product Details
- Mounting Location Rigid
- RPM 3600 rpm
- Rotation CCW/CW °
- Material Rolled Steel
- Ambient Temperature 40 °C
- RPM Range 3001-3600 rpm
- Voltage 115/230 V
- Frame 56
- Service Factor 1.15
- Horsepower 1-1/2 HP
- Enclosure Type Open/Drip Proof
- Is_Motor Yes
- Duty Continuous
- Design Capacitor Start Induction Run
- Enclosure DP
- Phase 1
- Full Load Efficiency 70
- Brand Marathon Motors
- Full Load Amps 21.3/10.6 FLA
- Motor RPM 60 Hertz 3600 rpm
- Hertz 60 Hz
- Thermal Protection Manual
- Manufacturers Part Number C704
Compliance & Certifications
- CSA Certified Yes
- UL Recognized
Customer Review
Product Q & A
There are no questions for this product.
Marathon Motors, C704, 5KC49PN2521Y, 1 1/2HP, 3450RPM, 115/230V, 1PH, 56 FR, DP
$304.95
