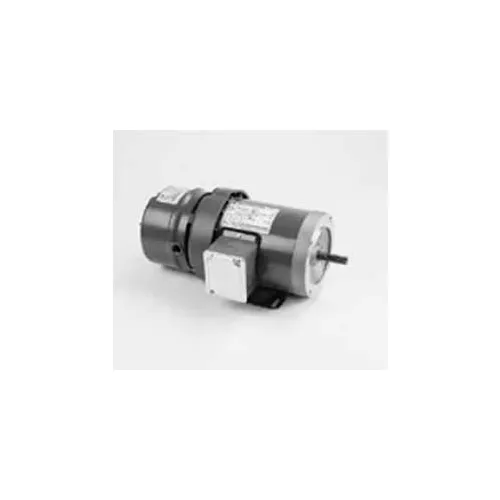

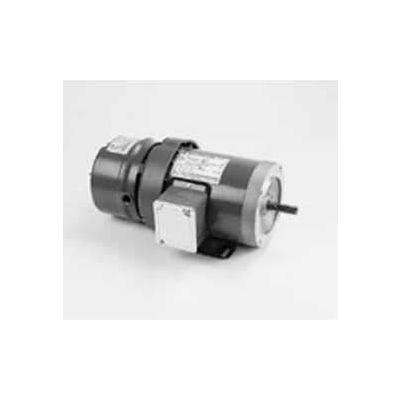

Marathon Motors Brakemotor, C408, 215TTTL7050, 10HP, 230/460V, 1800RPM, 215TC FR, 3PH, TENV
Marathon's line of brake motors are available in totally enclosed fan cooled, open drip proof, or explosion proof designs, in either Single or Three Phase.
Marathon's line of brake motors are available in totally enclosed fan cooled, open drip proof, or explosion proof designs, in either Single or Three Phase.
- HORSEPOWER 10
- ENCLOSURE TENV
- FRAME 215TC
- BRAND Marathon Motors
- MOUNTING C-Face Rigid
- MOTOR RPM 60Hz 1800
- MOTOR RPM 50Hz 1500
- RPM 1800
- PHASE 3
- VOLTAGE 230/460
- SERVICE FACTOR 1
- AMBIENT TEMP C 40
- ENCLOSURE TYPE Totally Enclosed
- OPPOSITE END BEARING 6307
- WEIGHT 211 (95.91 kg)
- UL Recognized Construction
- CSA Y
- CATALOG NO. C408
- DUTY Continuous
- MANUFACTURERS PART NUMBER C408
- RPM RANGE 1701-1800
- INSULATION CLASS F
- FL AMPS 230/460
- OPPOSITE END BEARING SIZE 6307
- DRIVE END BEARING SIZE 6309
- ASSEMBLY F1 (F2 Modification Available)
- BEARING-DRIVE-END 6309
- ORIENTATION Horizontal
- IP CODE 43
- STARTING TYPE Across the Line
- NEMA DESIGN B
- CE Y
- 50 Hertz kW 5.6
- 50 Hertz HP 7 1/2
- 50 Hertz SF 1
- FL EFFICIENCY 91.7
- 50 Hertz FL Amps 23/11.5
- 50 Hertz Voltage 190/380
- KVA-CODE H
- 50 Hertz FL eFF 91.70 Percent
- KILOWATS 7.5
- MODEL NUMBER 215TTTL7050
