Use anyplace where a typical Lift Truck's Straddle Legs may interfere with the Job

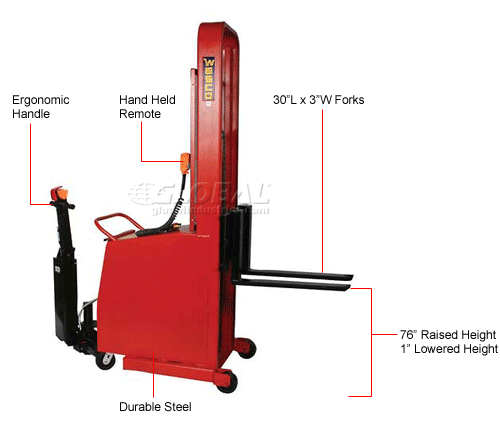

Counterbalanced stacker is ideal for positioning dies, feeding materials into machinery or loading/unloading trucks, as the lack of protruding outrigger legs allows the unit to approach the work area without interference. Proven battery powered hydraulic pump lifts and lowers cargo via a hand-held remote control to ensure operator safety. Maintenance-free 12V battery, 10 amp battery charger, voltmeter and keyed on/off switch are standard. Lift truck may be operated on AC current while recharging. Electric stacker includes a floor lock for stationary positioning and mast safety screen to protect operator. 1 Year Limited Warranty.

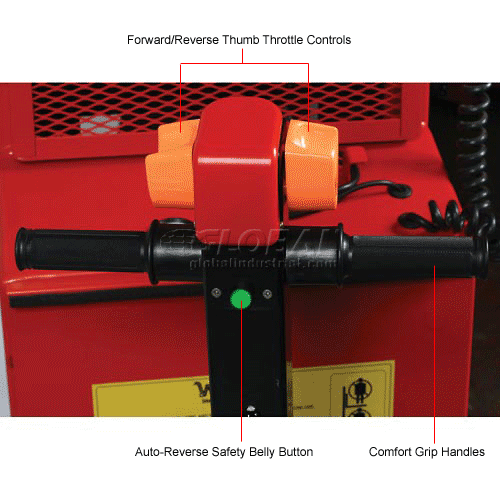

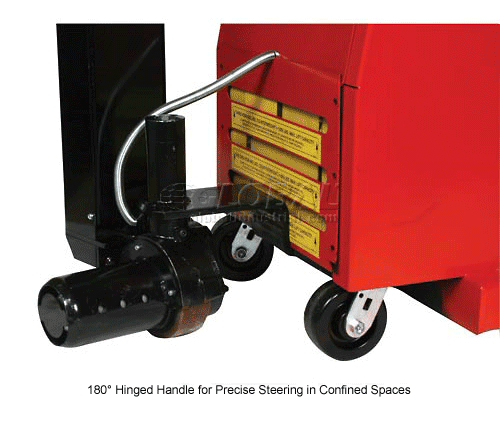

Powered Lift & Drive Model includes a high-torque drive motor that provides effortless forward/reverse movement of the stacker. Ergonomic handle controls variable speed with left or right hand and offers an auto-reverse safety belly button switch. 180° hinged design allow precise steering in confined spaces. Spring-loaded mechanism automatically compensates for uneven floors ensuring drive wheels maintain contact with the floor. Twin maintenance-free batteries provide power for propulsion and lift.
Note: Stackers require appropriate counter weights (sold separately) to obtain lift capacity. Order the proper weight kit for your planned load.
Dock required for Delivery.
Weights & Dimensions
- Wheel Diameter 4 in (10.16 cm)
- Width 26-1/4 in (66.68 cm)
- Fork Length 30 in (76.2 cm)
- Length 85 in (215.9 cm)
- Load Center 13 in (33.02 cm)
- Overall Fork Width 6 to 25 (adjustable) in
- Fork Width 3 in (7.62 cm)
- Height 92 in (233.68 cm)
- Weight Capacity 850 (with proper Counter Weight-Sold Separately) lbs
- Raised Height 76 in (193.04 cm)
- Lowered Height 1 in (2.54 cm)
- Weight 779 lbs (354.09 kg)
Product Details
- Voltage 12 V
- Assembly Required No
- Type Powered Lift & Drive
- Charger 10 Amp
- Brand Wesco
- Material Steel
- Manufacturers Part Number 261098-PD
- Color Red
- Wheel Type Phenolic
