Price: $5,416.00
Customers Also Viewed

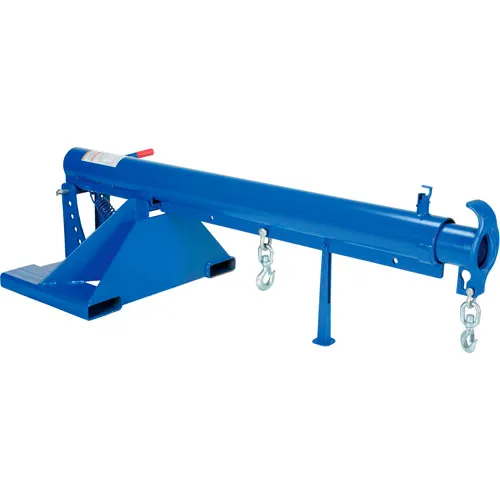

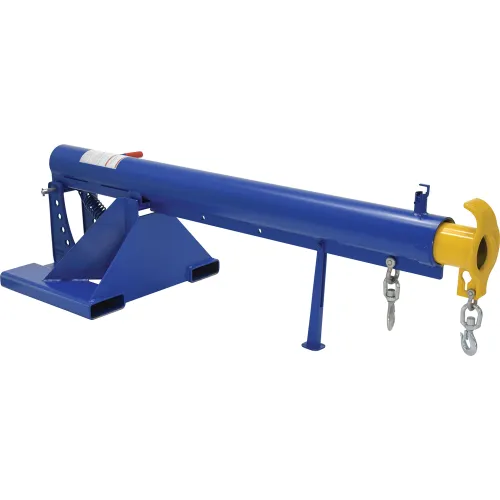

Perfect for when job includes high and hard to reach objects. Quickly and easily convert your forklift into a mobile pivoting boom lift. Telescoping boom adjusts from 84" to 147" horizontally in 7-1/2" increments and adjusts vertically five elevations up to 37 degrees (99-1/2") above horizontal. Features 3' restraining chain with grab hook, swivel hooks with safety latches, ten alternate hook positions and a boom locking T-pin.
Maximum Load on a Single Hook:
At 36" Hook Position = 6000 lbs.
At 146-5/8" Hook Position = 1800 lbs.
** "S" Dimension is the dimension from the center to center of the fork tine sleeves.
NOTE: OSHA requires contacting the manufacturer of your truck for written approval for the use of any fork truck attachments.
Maximum Load on a Single Hook:
At 36" Hook Position = 6000 lbs.
At 146-5/8" Hook Position = 1800 lbs.
** "S" Dimension is the dimension from the center to center of the fork tine sleeves.
NOTE: OSHA requires contacting the manufacturer of your truck for written approval for the use of any fork truck attachments.
Weights & Dimensions
- Center to Center of Fork Tine 30 IN (76.2 cm)
- Width 38 IN (96.52 cm)
- Retracted Length 86-5/8 IN (220.03 cm)
- Extended Length 146-5/8 IN (372.43 cm)
- Fork Opening 7-1/4 x 2-1/4 IN
- Height 27-11/16 IN (70.33 cm)
- Weight Capacity 6000 LBS (2727.27 kg)
- Weight 475 LBS (215.91 kg)
Product Details
- Assembly Required Assembled
- Type Adjustable Pivoting Boom Crane
- Brand Vestil
- Material Steel
- Manufacturers Part Number LM-OBT-6-30
- Color Family Blue
