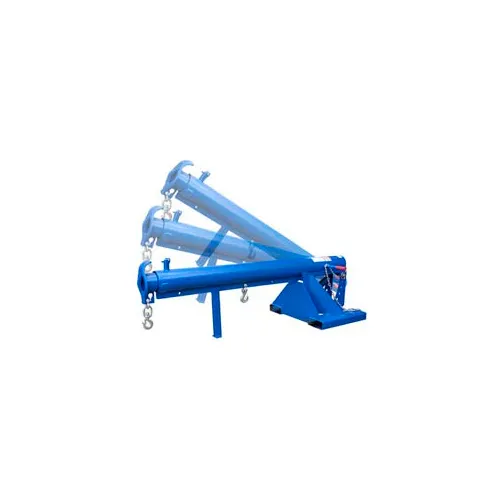

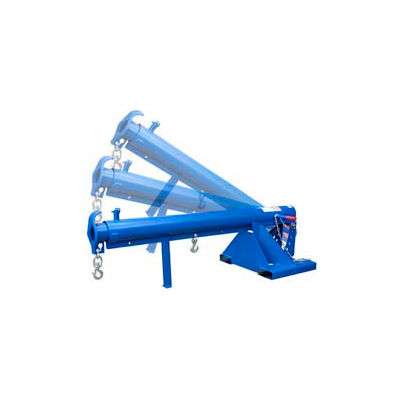

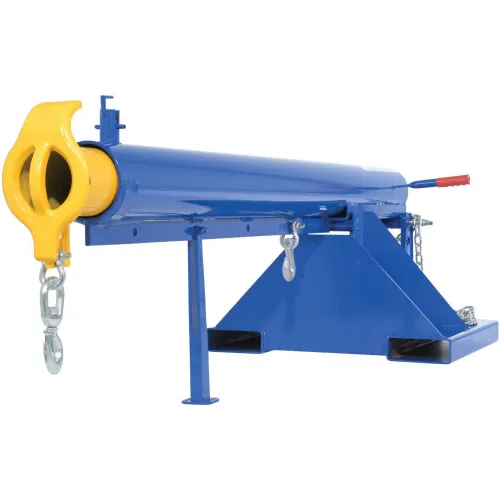

Adjustable Pivoting Forklift Jib Boom Crane LM-OBT-4-24 4000 Lb. 24" Center

Adjustable Pivoting Forklift Jib Boom Crane LM-OBT-4-24 4000 Lb. 24" Center

Item #: WB250538

(1)

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $4,520.00

Quantity

Customers Also Viewed

Global Industrial™ Forklift Telescoping Jib Boom Crane, 86-1/4" - 153-3/4"L, 4000 Lb. Capacity

Global Industrial™ Forklift Telescoping Jib Boom Crane, 86-1/4" - 153-3/4"L, 4000 Lb. Capacity

Global Industrial™ Forklift Fork Tine Extension 5"W x 72"L - Pair

Global Industrial™ Forklift Fork Tine Extension 5"W x 72"L - Pair

Global Industrial™ Workbench w/ 18 Ga 430 Stainless Steel Top & Undershelf, 60"W x 30"D

Global Industrial™ Workbench w/ 18 Ga 430 Stainless Steel Top & Undershelf, 60"W x 30"D

Global Industrial™ Forklift Pedestrian Safety LED Warning Spotlight, Blue

Global Industrial™ Forklift Pedestrian Safety LED Warning Spotlight, Blue

Lift-All® EE2803DFX3 Web Sling 2 Ply Eye & Eye 3 Feet Long 3 Inches Wide

Lift-All® EE2803DFX3 Web Sling 2 Ply Eye & Eye 3 Feet Long 3 Inches Wide

Global Industrial™ Swivel Hook Double Fork Forklift Hook Attachment, 10000 Lbs. Cap.

Global Industrial™ Swivel Hook Double Fork Forklift Hook Attachment, 10000 Lbs. Cap.

Global Industrial™ Swivel Hook Single Fork Forklift Hook Attachment, 4000 Lbs. Cap.

Global Industrial™ Swivel Hook Single Fork Forklift Hook Attachment, 4000 Lbs. Cap.

Global Industrial™ Vinyl Forklift Truck Seat with Seat Belt

Global Industrial™ Vinyl Forklift Truck Seat with Seat Belt

Global Industrial™ Cork Bulletin Board With Aluminum Frame, 96" x 48"

Global Industrial™ Cork Bulletin Board With Aluminum Frame, 96" x 48"

Global Industrial™ 2 Head Round LED Emergency Light w/ Adjustable Optics, Ni-Cad Battery Backup

Global Industrial™ 2 Head Round LED Emergency Light w/ Adjustable Optics, Ni-Cad Battery Backup

Elite Sales HG34SPAS 3/4" Galvanized Screw Pin Anchor Shackle - Pack of 10

Elite Sales HG34SPAS 3/4" Galvanized Screw Pin Anchor Shackle - Pack of 10

EXPO® Dry Erase Surface Cleaner, 8 Oz. Spray Bottle

EXPO® Dry Erase Surface Cleaner, 8 Oz. Spray Bottle

Global Industrial™ 11 Pockets - Medical Chart Hanging Wall File Holder - Black

Global Industrial™ 11 Pockets - Medical Chart Hanging Wall File Holder - Black

Global Industrial™ Plastic Shipping/Storage Tote w/ Attached Lid, 21-7/8"x15-1/4"x12-7/8", Gray

Global Industrial™ Plastic Shipping/Storage Tote w/ Attached Lid, 21-7/8"x15-1/4"x12-7/8", Gray

Forklift Battery PPE Protective Handling Kit 70-1170

Forklift Battery PPE Protective Handling Kit 70-1170

Perfect for when job includes high and hard to reach objects. Quickly and easily convert your forklift into a mobile pivoting boom lift. Telescoping boom adjusts from 84" to 147" horizontally in 7-1/2" increments and adjusts vertically five elevations up to 37 degrees (99-1/2") above horizontal. Features 3' restraining chain with grab hook, swivel hooks with safety latches, ten alternate hook positions and a boom locking T-pin.

Maximum Load on a Single Hook:
At 36" Hook Position = 4000 lbs.
At 60" Hook Position = 3500 lbs.
At 84" Hook Position = 3000 lbs.
At 99" Hook Position = 2690 lbs.
At 114" Hook Position = 2375 lbs.
At 129" Hook Position = 2060 lbs.
At 146-5/8" Hook Position = 1750 lbs.


** "S" Dimension is the dimension from the center to center of the fork tine sleeves.

NOTE: OSHA requires contacting the manufacturer of your truck for written approval for the use of any fork truck attachments.

Weights & Dimensions

  • Center to Center of Fork Tine 24 IN (60.96 cm)
  • Width 32 IN (81.28 cm)
  • Retracted Length 86-5/8 IN (220.03 cm)
  • Extended Length 146-5/8 IN (372.43 cm)
  • Fork Opening 7-1/4 x 2-1/2 IN
  • Height 27-11/16 IN (70.33 cm)
  • Weight Capacity 4,000 LBS (1818.18 kg)
  • Weight 510 LBS (231.82 kg)

Product Details

  • Assembly Required Assembled
  • Type Adjustable Pivoting Boom Crane
  • Brand Vestil
  • Material Steel
  • Manufacturers Part Number LM-OBT-4-24
  • Color Family Blue
Customer Review

5.0

  • 5 Star

    1
  • 4 Star

    0
  • 3 Star

    0
  • 2 Star

    0
  • 1 Star

    0

Most Recent Reviews

  • Most Recent Reviews
  • Highest Rated Reviews
  • Lowest Rated Reviews
  • Reviewer: Brad

    Date: April 23, 2019

    Excellent Tool
    Your review:
    The jib paid for itself on day 1 when we got it. We used it to get a large steel fan assembly into a tight spot to reassemble our Regenerative Thermal Oxidizer. If we didn't have the jib we would have had to hire a crane to come in. It is a must have when lifting gearboxes and motors off the top of tanks and other high areas. The jib has increased the safety and efficiency at our plant. I don't know how any maintenance crew could do with out one. Brad
Product Q & A

There are no questions for this product.
