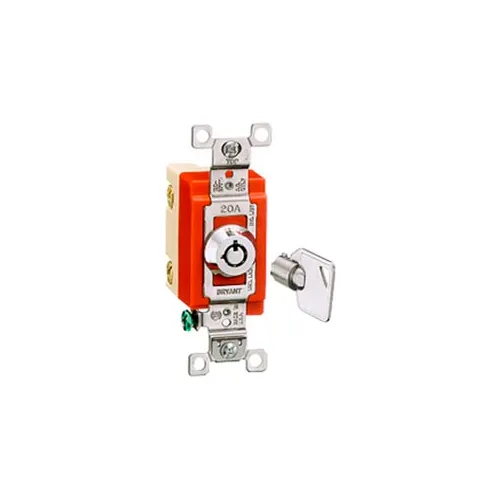

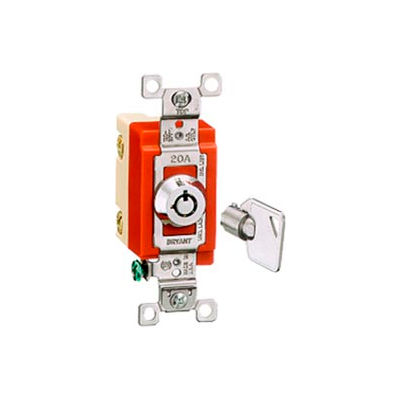

Bryant 4901RKL Barrel Key Switch, Single Pole, 20A, 120/277V AC, Rotary Locking

Bryant 4901RKL Barrel Key Switch, Single Pole, 20A, 120/277V AC, Rotary Locking

Item #: WBB211243

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $157.95

Quantity

Customers Also Viewed

Bryant 4925W Toggle Switch, Double Pole, Double Throw, 20A, 120/277V AC, White

Bryant 4925W Toggle Switch, Double Pole, Double Throw, 20A, 120/277V AC, White

Bryant 3025BRN Toggle Switch, Double Pole, Double Throw, 30A, 120/277V AC, Brown

Bryant 3025BRN Toggle Switch, Double Pole, Double Throw, 30A, 120/277V AC, Brown

General Purpose AC, Industrial Switches

Construction:
  • Base Material: Thermoset
  • Face Material: Thermoset, Color coded by voltage
  • Toggle/Actuator Material: Metallic
  • Terminals: High Performance Copper Alloy
  • Mounting Yoke: Brass and Nickel Plated Steel
  • Contacts: Silver Cadmium Oxide
  • Movable Contact Arm: High Performance Copper Alloy
  • Rocker: Thermoplastic Elastomer
  • Ground Terminal: Brass and Nickel Plated Steel
  • Terminal Screws: Brass
  • Ground Screw: Brass (green)
  • Auto Ground Clip: Stainless Steel
Technical Specs:
  • Dielectric Voltage: Withstands 1500V Minimum
  • Overload: Minimum 48 times rated current for 100 cycles
  • Temp. Rise: 30 deg C maximum at rated current
  • Max Continuous Current: 20A
  • Endurance: 50,000 cycles min, tungsten filament lamp load (Fed Spec) #WS896E
  • Flammibility: UL 94 V2
  • Operating Temperature: Maximum continuous 75 deg C- Minimum -40 dec C (w/o impact)
Certifications:
  • Standards: Complies with UL 20 and NEMA WD-1
  • Federal Specifications: Verified under Fed Spec #WS896E
  • UL Certification: UL Listed, File E1464, Guide #WMUZ
  • These Barrel Key switches are all keyed the same way. The same key will work on all of the switches.

Weights & Dimensions

  • Terminal Gauge Min 14 AWG ga
  • Terminal Gauge Max 10 AWG ga

Product Details

  • Made in the USA Yes
  • Brand Bryant
  • Voltage 120 / 277V AC V
  • Manufacturers Part Number 4901RKL
  • Amperage 20 A
  • Color Brown
  • Wiring Syle Back & Side Wired
  • Contact Type Single Pole
Customer Review

Not Yet Reviewed

Product Q & A

There are 1 questions and 1 answer for this product.

  • Are all these keyed alike?

    Question Asked By: Mitch, April 19, 2019

    Answer This Question

    Question Answered By:

    • Product Expert, April 19, 2019

      Hello Mitch, yes all of the Barrel Key switches are keyed the same way. Thank you for your question.
