Price: $2,515.00
Customers Also Viewed

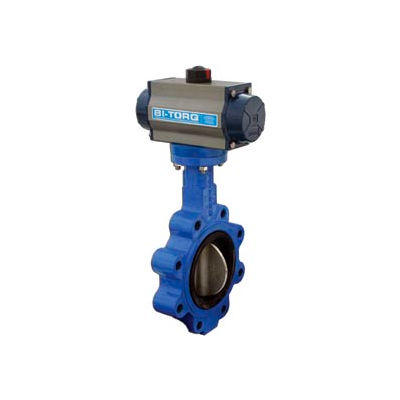

The BI-TORQ BY-WE-2-80-125-SR series 8" wafer style automated butterfly valve features a standard cast iron body, SS disc and EPDM seal. The valve has a pressure rating to 225 PSI (thru 8") and a temperature rating of +275°F. The EPDM seals are compatible with a wide range of industries and media type, especially high temperature applications. This version comes complete with a PN-125-SR spring return (air-to-open, spring to fail close) pneumatic actuator sized for 80PSI air supply.
Weights & Dimensions
- Width 10-1/2 IN (26.67 cm)
- Length 16-3/8 IN (41.59 cm)
- Valve Size 8 IN (20.32 cm)
- Height 15-13/16 IN (40.16 cm)
Product Details
- Actuator Pneumatic
- Package Quantity 1
- Brand Bi-Torq
- Actuation Type Spring Return
- Material Cast Iron, SS, Aluminum
- Manufacturers Part Number BY-WE-2-80-125-SR
- Valve Type Butterfly
- Actuated or Manual Actuated
- Respirator Connection Type Wafer
