Price: $459.95
Customers Also Viewed

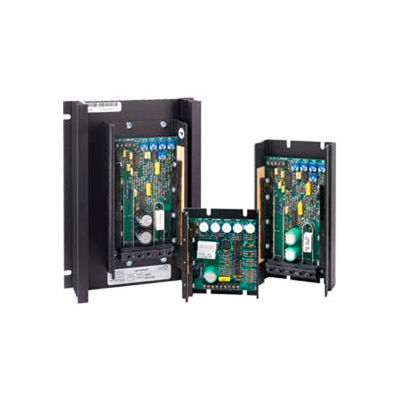

Low Voltage DC PWM Drive - 24-36VDC
Provides smooth variable speed capability for mobile equipment. Increases range or running time of battery operated equipment through high efficiency. Allows reduction in battery size w/out loss of operating range. Automatic compensation to allow for declining battery voltage. Speed regulation is ±1% of base speed. Adjustable maximum speed. Adjustable minimum speed. Adjustable I.R. compensation. Adjustable current limit. Adjustable acceleration speed. Maintains variable speed control as batteries discharge. 5K ohm speed pot with 8" leads, knob and dial included Speed adjustment using 5K ohm speed pot or 0-10 VDC analog input signal. Inhibit terminal permits optional start-stop without breaking battery line
Provides smooth variable speed capability for mobile equipment. Increases range or running time of battery operated equipment through high efficiency. Allows reduction in battery size w/out loss of operating range. Automatic compensation to allow for declining battery voltage. Speed regulation is ±1% of base speed. Adjustable maximum speed. Adjustable minimum speed. Adjustable I.R. compensation. Adjustable current limit. Adjustable acceleration speed. Maintains variable speed control as batteries discharge. 5K ohm speed pot with 8" leads, knob and dial included Speed adjustment using 5K ohm speed pot or 0-10 VDC analog input signal. Inhibit terminal permits optional start-stop without breaking battery line
- BRAND Dart Controls
- MANUFACTURERS PART NUMBER 65E60
- OUTPUT VOLTAGE 0-24/36 VDC
- PACKAGE QUANTITY 1
- DRIVE SERIES 65E Series
- INPUT VOLTAGE 24-36 VDC
- HP 1/4 - 2
- HEIGHT INCHES 2.27 (5.77 cm)
- LENGTH INCHES 9.00 (22.86 cm)
- WIDTH INCHES 6.70 (17.02 cm)
