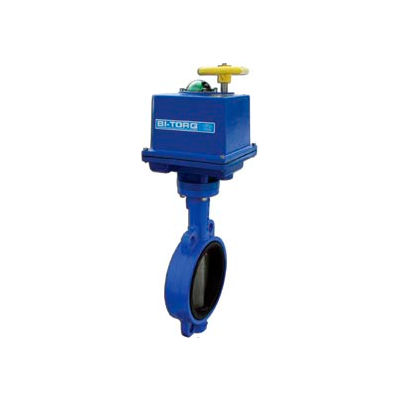

The BI-TORQ BY-WE-2-050-1000-A-4-P1-VP series 5" wafer style automated butterfly valve features a standard cast iron body, SS disc and EPDM seal. The valve has a pressure rating to 235 PSI (to 8") and a temperature rating of +275°F. The EPDM seals are compatible with a wide range of industries and media type, especially high temperature applications. This version comes complete with a BI-1000-A-4-P1-VP 115VAC electric actuator with a NEMA 4 powder coated enclosure and a 4-20mA positioner card for modulating service. high-visibility dome and limit switches provide position indication. The actuator is rated from 0°F to +150°F with temperature controls available for extreme environments.
Weights & Dimensions
- Width 7-31/64 IN (19.01 cm)
- Length 7 IN (17.78 cm)
- Valve Size 5 IN (12.7 cm)
- Height 19-3/4 IN (50.17 cm)
Product Details
- Actuator Electric
- Package Quantity 1
- Brand Bi-Torq
- Actuation Type Modulating
- Material Cast Iron, SS, Aluminum
- Manufacturers Part Number BY-WE-2-50-1000-A-4-P1-VP
- Valve Type Butterfly
- Actuated or Manual Actuated
- Respirator Connection Type Wafer
