Price: $3,047.00
Customers Also Viewed

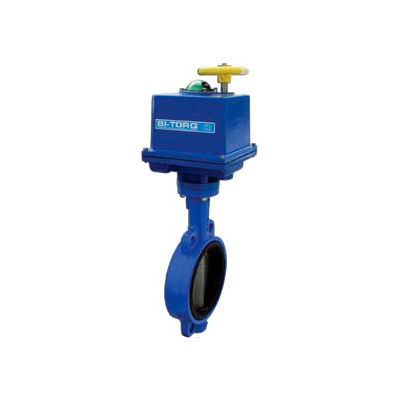

The BI-TORQ BY-LV-2-050-1000-A-4-P1 series 5" lug style automated butterfly valve features a standard cast iron body, SS disc and Viton seal. The valve has a pressure rating to 235 PSI (to 8") and a temperature rating of +350°F. The Viton seals are compatible with a wide range of industries and media type, especially high temperature applications. This version comes complete with a BI-1000-A-4-P1 115VAC electric actuator with a NEMA 4 powder coated enclosure and power brake. A high-visibility dome and limit switches provide position indication. The actuator is rated from 0°F to +150°F with temperature controls available for extreme environments.
Weights & Dimensions
- Width 5-63/64 IN (15.2 cm)
- Length 8-5/32 IN (20.72 cm)
- Valve Size 5 IN (12.7 cm)
- Height 9-55/64 IN (25.04 cm)
Product Details
- Actuator Electric
- Package Quantity 1
- Brand Bi-Torq
- Actuation Type On-Off
- Material Cast Iron, SS, Aluminum
- Manufacturers Part Number BY-LV-2-50-1000-A-4-P1
- Valve Type Butterfly
- Actuated or Manual Actuated
- Respirator Connection Type Lug
