Continental Dynamics® Direct Drive 30" Exhaust Fan w/ Shutter, 1 Speed, 8000CFM, 1/4 HP, 1Phase

Continental Dynamics® Direct Drive 30" Exhaust Fan w/ Shutter, 1 Speed, 8000CFM, 1/4 HP, 1Phase

Item #: WB294498

(28)

Ships in One Business Day ? Items ship from warehouse within one business day (Mon. - Fri. excluding holidays). Transit times are determined by shipping method and destination.

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $535.00

Quantity

Customers Also Viewed

Continental Dynamics® Direct Drive 24" Exhaust Fan w/ Shutter, 2 Speed, 7000 CFM, 1/4HP, 1Phase

Continental Dynamics® Direct Drive 24" Exhaust Fan w/ Shutter, 2 Speed, 7000 CFM, 1/4HP, 1Phase

Continental Dynamics® Direct Drive 24" Exhaust Fan w/ Shutter, 1 Speed, 7000 CFM, 1/4HP, 1Phase

Continental Dynamics® Direct Drive 24" Exhaust Fan w/ Shutter, 1 Speed, 7000 CFM, 1/4HP, 1Phase

Continental Dynamics® Direct Drive 18" Exhaust Fan W/ Shutter, 3 Speed, 5250 CFM, 1/8HP, 1Phase

Continental Dynamics® Direct Drive 18" Exhaust Fan W/ Shutter, 3 Speed, 5250 CFM, 1/8HP, 1Phase

Continental Dynamics® Direct Drive 12" Exhaust Fan w/ Shutter, 1 Speed, 2150CFM, 1/12HP, 1Phase

Continental Dynamics® Direct Drive 12" Exhaust Fan w/ Shutter, 1 Speed, 2150CFM, 1/12HP, 1Phase

Continental Dynamics® Direct Drive 10" Exhaust Fan W/ Shutter, 3 Speed, 1500CFM, 1/30HP, 1Phase

Continental Dynamics® Direct Drive 10" Exhaust Fan W/ Shutter, 3 Speed, 1500CFM, 1/30HP, 1Phase

Continental Dynamics® Direct Drive 10" Exhaust Fan W/ Shutter, 1 Speed, 1500CFM, 1/30HP, 1Phase

Continental Dynamics® Direct Drive 10" Exhaust Fan W/ Shutter, 1 Speed, 1500CFM, 1/30HP, 1Phase

Continental Dynamics® 30" Direct Drive Exhaust Fan, 1 Speed, 8000 CFM, 1/4 HP

Continental Dynamics® 30" Direct Drive Exhaust Fan, 1 Speed, 8000 CFM, 1/4 HP

Vostermans Mechanical Thermostat For Fan Or Heater Single Pole

Vostermans Mechanical Thermostat For Fan Or Heater Single Pole

✓ 30" Fan diameter
✓ Moves up to 8000 CFM of air
✓ Junction box allows direct wiring

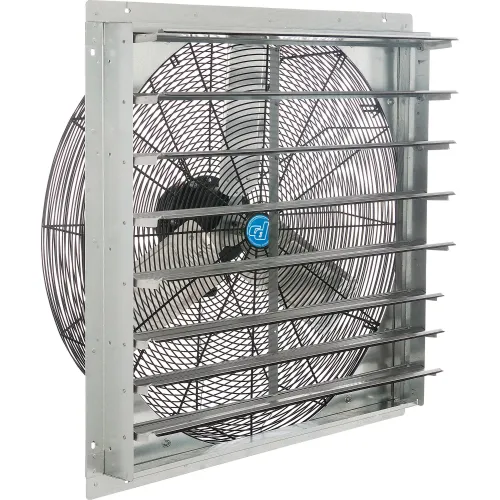

Too much humidity and heat is exhausting. Solve it quickly with the Continental Dynamics® Direct Drive 30" Exhaust Fan With Shutter This industrial exhaust fan features a 120V, single-phase totally permanently lubricated motors with provisions for direct wiring. These shutter mounted fans install on inside wall and eliminate the need for external framing and shutter. Quiet operation makes it ideal for commercial environments. Aluminum blades are enclosed in a sturdy steel spiral wire guard. Note: Rough-in hole size is 1/2 inch (+/- 5/16) larger than fan blade size. Meets OSHA and UL507 standards. UL, cUL listed. Horsepower rating based upon maximum speed/load. 1-Year Limited Warranty.

Weights & Dimensions

  • Rough Opening 30-1/2 IN (77.47 cm)
  • Width 33-1/2 IN (85.09 cm)
  • Fan Diameter 30 IN (76.2 cm)
  • Cord Length Not Included FT
  • Height 33-1/2 IN (85.09 cm)
  • Depth 6-1/2 IN (16.51 cm)
  • Weight 54 LBS (24.55 kg)

Product Details

  • Number of Speeds 1
  • Mounting Location Inside Wall
  • Assembly Required Unassembled
  • Amperage 2.90 A
  • Drive Type Direct Drive
  • Material Aluminum
  • RPM High 1,100 RPM
  • Voltage 120 V
  • Horsepower 1/4 HP
  • CFM High 8000 CFM
  • Power Cord Type Hard Wire
  • Watts 275 W
  • Brand CD
  • Max Temperature 104° F °F
  • Decibels 76
  • Color Family Gray

Warranty

  • Warranty 1 YR

Compliance & Certifications

  • Certifications UL, cUL listed, OSHA & UL507 Compliant
Customer Review

5.0

  • 5 Star

    19
  • 4 Star

    7
  • 3 Star

    1
  • 2 Star

    0
  • 1 Star

    1

Most Recent Reviews

  • Most Recent Reviews
  • Highest Rated Reviews
  • Lowest Rated Reviews
  • Reviewer: ESTELLA

    Date: July 26, 2020

    Empire Polo Club
    Your review:
    it was used for our paint storage room. Works perfect. Thank you.
  • Reviewer: JEFF

    Date: July 08, 2020

    exhaust fan
    Your review:
    Relatively quiet and easy to install
  • Reviewer: david

    Date: June 12, 2020

    good fan but reduce your rough-in size.
    Your review:
    the fan works well,as expected. I would reduce the 31' square rough opening that is redommended by 1/2' because the attachment holes are very close to the edge of the framing.
  • Reviewer: JON

    Date: April 03, 2020

    So totally let down and feel I wasted a $1,000.00
    Your review:
    It is only 68 Degrees the first day they went in and they only run for 2 minutes before they shut off. I bought 3 warehouse exhaust fans to cool our warehouse this summer(this is what they are designed for) and all 3 will not run more than 2 minutes before they overheat and turn off. If it is below 70 degrees now how will they even work when it is 100 degrees out. If these are designed to go in the peaks of a warehouse, on a 100 degree day it is 140 plus at the roofline so what are these even for?
  • Reviewer: Mike

    Date: June 03, 2019

    FabMgr
    Your review:
    Quality fan for the price.
  • Reviewer: Tom

    Date: April 23, 2019

    30'' Exaust fan w/ shutter
    Your review:
    Nice unit, moves lots of hot air in my 1000 sq ft. garage. Its more noisy than I had hoped but its moving air. Good unit for price.
  • Reviewer: BRUCE

    Date: April 23, 2019

    Exhaust ventilation fan
    Your review:
    Works great. Easily installed and have had no problems with it.
  • Reviewer: Ron

    Date: April 23, 2019

    Exhaust Fan
    Your review:
    The fan was easy to install. We've put in several of them and there have been no issues.
  • Reviewer: Venancio

    Date: April 23, 2019

    Fan in metal building
    Your review:
    Could have had better instructions, but the quality of the fan and the shutter seemed very good. It is quiet and moves lots of air.
  • Reviewer: Columbiana Grinding Services

    Date: April 23, 2019

    Exhaust Fan Review
    Your review:
    Works very well for intended purpose of venting heat from equipment to the outdoors.
Product Q & A

There are 4 questions and 4 answers for this product.

  • With this single speed fan, would a Variable Fan Speed Controller be applicable, or is it simply On or Off?

    Question Asked By: Mike, August 29, 2018

    Answer This Question

    Question Answered By:

    • anonymous

      Hello Mike, this unit is designed for single speed only. However, we do offer model 294498A https://www.globalindustrial.com/p/hvac/exhaust-fans/exhaust-and-supply/tpi-exhaust-fan-30-in-with-shutter-2-speed that is available in a 2-speed operation. You can also contact our sales team at 1.888.978.7759 for a list of models compatible with a variable speed switch. Thank you for your question.

  • I have a 30 hP compressor and dryer in a room about 4500 Cubic feet in size. It is about 15 degrees above ambient. I have a 32x36 opening (will remove a window) for a fan in the block wall. I can also use the other window of the same size across the room for makeup air. Will this fan do the trick?

    Question Asked By: Philip, July 25, 2017

    Answer This Question

    Question Answered By:

    • anonymous

      Hello Philip, This fan is meant for inside wall installation. This fan should not be operated outside. For proper exhaust operation, a window, door, or louver should be opened on the opposite side of the area to be ventilated. Thank you for your interest in our product.

  • Will the shutters of item #294498 close when the fan is off?

    Question Asked By: May 06, 2014

    Answer This Question

    Question Answered By:

    • anonymous

      Yes, these are gravity shutters that will close when the fan shuts off.

  • We're going to be building a 24' x 28' stand alone garage (approx. 20' to the center peak) with an open walk-up loft. What size fan do we need to keep it reasonably cool in the summer?

    Question Asked By: October 10, 2012

    Answer This Question

    Question Answered By:

    • Product Expert, October 10, 2012

      Model number 294497, CD 24" Exhaust Fan Shutter Mounted, is highly recommended for the stand alone garage. The CFM required to ventilate a building with dimensions of 24 ft. L x 28 ft. W x 20 ft. H with 4 minutes between air changes is 3,360 CFM and 294497 would be perfect.
