Price: $1,560.00
Customers Also Viewed

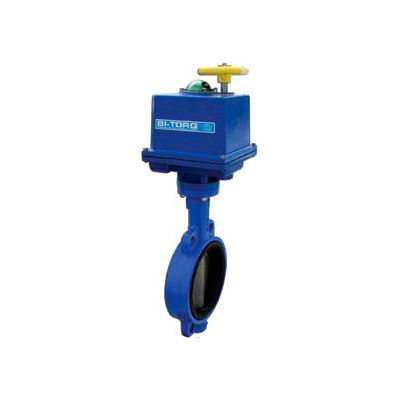

The BI-TORQ BY-WE-2-030-300-A-4-P1 series 3" wafer style automated butterfly valve features a standard cast iron body, SS disc and EPDM seal. The valve has a pressure rating to 235 PSI (to 8") and a temperature rating of +275°F. The EPDM seals are compatible with a wide range of industries and media type, especially high temperature applications. This version comes complete with a BI-300-A-4-P1 115VAC electric actuator with a NEMA 4 powder coated enclosure and power brake. A high-visibility dome and limit switches provide position indication. The actuator is rated from 0°F to +150°F with temperature controls available for extreme environments.
Weights & Dimensions
- Width 5-15/32 IN (13.89 cm)
- Length 6-7/8 IN (17.46 cm)
- Valve Size 3 IN (7.62 cm)
- Height 13 IN (33.02 cm)
Product Details
- Actuator Electric
- Package Quantity 1
- Brand Bi-Torq
- Actuation Type On-Off
- Material Cast Iron, SS, Aluminum
- Manufacturers Part Number BY-WE-2-30-300-A-4-P1
- Valve Type Butterfly
- Actuated or Manual Actuated
- Respirator Connection Type Wafer
