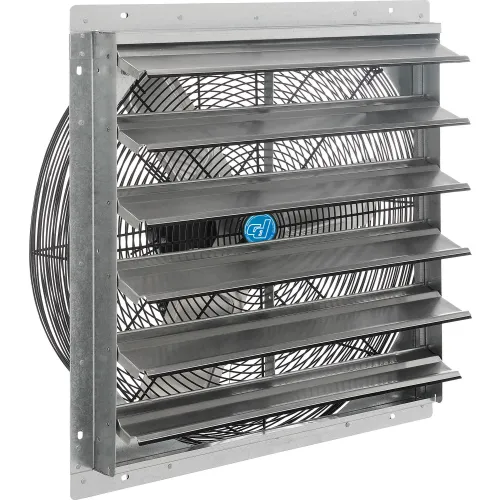

Continental Dynamics® Direct Drive 24" Exhaust Fan W/ Shutter, 1 Speed, 7000 CFM, 1/4HP, 1Phase

Continental Dynamics® Direct Drive 24" Exhaust Fan W/ Shutter, 1 Speed, 7000 CFM, 1/4HP, 1Phase

Item #: WB294497

(31)

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $469.95

Quantity

Customers Also Viewed

Guarded exhaust fans feature 120V, single-phase totally permanently lubricated motors with provisions for direct wiring. These shutter mounted fans install on inside wall and eliminate the need for external framing and shutter. Quiet operation makes it ideal for commercial environments. Aluminum blades are enclosed in a sturdy steel spiral wire guard. Note: Rough-in hole size is 1/2 inch (+/- 5/16) larger than fan blade size. Meets OSHA and UL507 standards. UL, cUL listed. Horsepower rating based upon maximum speed/load. Horsepower rating based upon maximum speed/load. The product has a limited warranty of 1 year.

Weights & Dimensions

  • Rough Opening 24-1/2 in (62.23 cm)
  • Width 27-1/2 in (69.85 cm)
  • Fan Diameter 24 in (60.96 cm)
  • Cord Length Not Included ft
  • Height 27-1/2 in (69.85 cm)
  • Depth 6-1/2 in (16.51 cm)
  • Weight 47 lbs (21.36 kg)

Product Details

  • Number of Speeds 1
  • Mounting Location Inside Wall
  • Assembly Required Unassembled
  • Amperage 2.20 A
  • Drive Type Direct Drive
  • Material Steel / Aluminum
  • RPM High 1,100 rpm
  • Voltage 120 v
  • Horsepower 1/4 HP
  • CFM High 7,000 cfm
  • Power Cord Type Hard Wire
  • Watts 245 w
  • Brand CD
  • Warranty 1 yr
  • Max Temperature 104° F °f
  • Decibels 70
  • Color Family Gray

Compliance & Certifications

  • Certifications UL, cUL listed, OSHA & UL507 Compliant
Customer Review

5.0

  • 5 Star

    22
  • 4 Star

    7
  • 3 Star

    2
  • 2 Star

    0
  • 1 Star

    0

Most Recent Reviews

  • Most Recent Reviews
  • Highest Rated Reviews
  • Lowest Rated Reviews
  • Reviewer: ALEXANDER

    Date: September 25, 2021

    Unstoppable! Beautiful
    Your review:
    Best exhaust fan ever! I love the high rating of CFM, and hot air in the room has definitely met its match. Excellent product, looks very professional, decently quiet. I cannot wait to buy more if I need them. One thing to mention, indeed it does not come with a plug, but there will be the three wires sticking out ready to be wired then plugged into your wall.
  • Reviewer: Jorge

    Date: April 15, 2021

    Power
    Your review:
    Power
  • Reviewer: HUGH

    Date: July 30, 2020

    Good Value
    Your review:
    Just what we needed to move air through the very warm mechanical room. Spring loaded shutter keeps closed when the fan is off. Keeps the weather from coming in the louvres.
  • Reviewer: CLAY

    Date: July 22, 2020

    Nice fan
    Your review:
    Easy installation, moves lots of air
  • Reviewer: ERIC

    Date: July 08, 2020

    good stuff
    Your review:
    good product, prompt service
  • Reviewer: TRENT

    Date: April 03, 2020

    Would buy again
    Your review:
    Works great really moves air.
  • Reviewer: Todd

    Date: August 13, 2019

    24" Exhaust Fan
    Your review:
    Excellent quality, pretty quite, easy installation. Customer service was very responsive to a minor problem and was quickly solved to my satisfaction.
  • Reviewer: Greg

    Date: April 23, 2019

    Fan
    Your review:
    Fan is great, fast shipping
  • Reviewer: Michael

    Date: April 23, 2019

    Love it!
    Your review:
    I installed this fan in my shop on my farm. My shop is 24x40 with 14 height ceiling. This fan does a great job of moving hot air out and is very quiet. Its well built and I was able to install it easily.
  • Reviewer: Steve

    Date: April 23, 2019

    Excellent product
    Your review:
    The fan came in great shape and was properly packed. It was easy to assemble and install.
Product Q & A

There are 2 questions and 2 answers for this product.

  • Can this fan be used to exhaust paint fumes?

    Question Asked By: Eilyn, October 16, 2021

    Answer This Question

    Question Answered By:

    • Product Expert, July 22, 2019

      Hello Eilyn, yes this can be used to exhaust fumes. However, if you are in a confined space or need an extraction device, we can recommend the following models as well: 246429, 246431, or 292646. Thank you for your question.

  • Can the blades and motor direction be reversed to use this as a supply fan as well?

    Question Asked By: Robert, April 07, 2015

    Answer This Question

    Question Answered By:

    • Product Expert, April 07, 2015

      The blades and motor cannot be reversed. This is an exhaust fan only.
