Erie's PopTop motorized hydronic valves provide convenient, reliable and easy installation for a variety of heating and cooling applications. Installation is a snap with easy, one-handed removal or engagement of the actuator to the valve body. Push the button and lift. It's that simple. Made in the USA.
- Actuator can be easily attached after the valve body has been installed into the system
- Mounts quickly and easily without the need of linkages or calibration
- Temperature Range: 32° to 250°F
- 18" leads for actuators with end switches
- Voltage - 24 Vac @ 50/60 Hz, 110 Vac @ 50 Hz and 120 Vac @ 60 Hz, 230 Vac @ 50 Hz, 240 Vac @ 60 Hz, 208 Vac @ 50/60 Hz., 277 Vac @50/60 Hz.
- Up to 60 psi pressure differential close-off
- Power Requirements 6.5 watts, 7.5 Va.
- Control Signal - on/off, 2 position, spring return
- Materials - stainless steel base plate, aluminum cover
Weights & Dimensions
- Depth 2-3/4 IN (6.99 cm)
- Width 3 IN (7.62 cm)
- Height 5-1/2 IN (13.97 cm)
- Weight 1.2 LBS (.55 kg)
Product Details
- Pressure Differential 60 PSI
- Voltage 230 V
- Temperature Control Range 32 to 250 °F
- For Use With VS VALVES
- Watts 6.5 W
- Brand Erie
- Material Stainless Steel
- Manufacturers Part Number AG24U020
- Color Family Silver
Warranty
- Warranty 1 YR
Customer Review
Product Q & A
There are no questions for this product.
Accessories

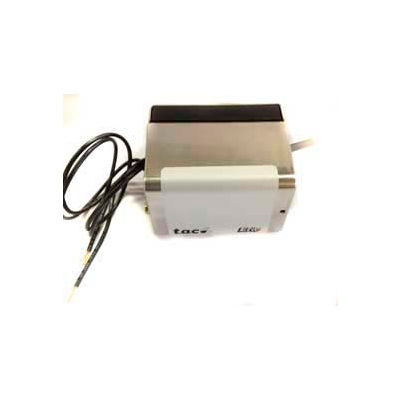

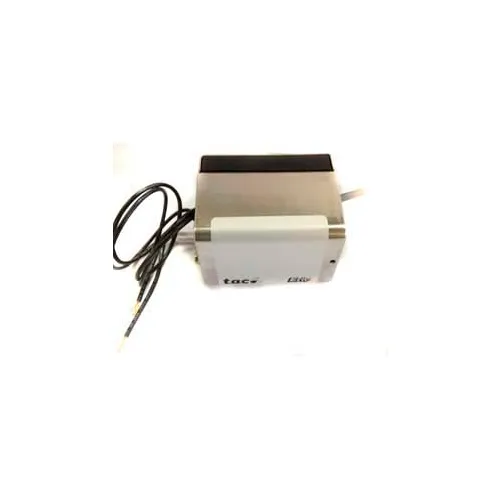

Erie 230V Normally Open Steam Actuator Without End Switch AG24U020
