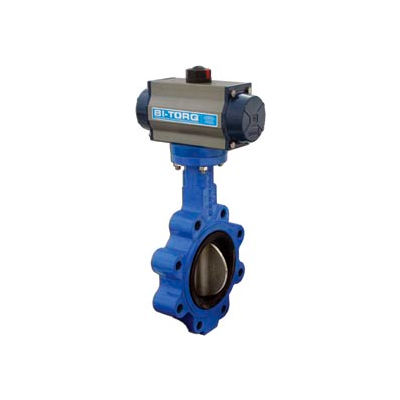

The BI-TORQ BY-LN-2-20-75-SR series 2" lug style automated butterfly valve features a standard cast iron body, SS disc and BUNA seal. The valve has a pressure rating to 225 PSI (thru 8") and a temperature rating of +180°F. The BUNA seals are compatible with a wide range of industries and media type, especially high temperature applications. This version comes complete with a PN-75-SR spring return (air-to-open, spring to fail close) pneumatic actuator sized for 80PSI air supply.
Weights & Dimensions
- Width 5-63/64 IN (15.2 cm)
- Length 8-5/32 IN (20.72 cm)
- Valve Size 2 IN (5.08 cm)
- Height 9-55/64 IN (25.04 cm)
Product Details
- Actuator Pneumatic
- Package Quantity 1
- Brand Bi-Torq
- Actuation Type Spring Return
- Material Cast Iron, SS, Aluminum
- Manufacturers Part Number BY-LN-2-20-75-SR
- Valve Type Butterfly
- Actuated or Manual Actuated
- Respirator Connection Type Lug
