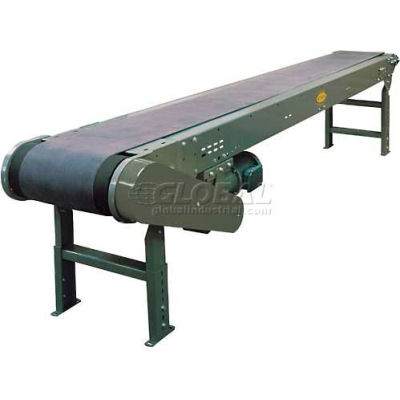

Shown with Optional Floor Supports
Price: $8,810.00
Customers Also Viewed
Standard specifications include:
BED - 6-5/8" deep x 12 ga. formed steel Slider Bed is powder coat painted. Reinforced with 3/4" pipe which forms sockets for guard rails.
BELT - Ultimate 140BBS - Nitrile Belt
END DRIVE - Located on discharge end of conveyor, chain guard on left hand side.
DRIVE PULLEY - 8" dia. with 1-3/16" dia. shaft at bearings, machine crowned and fully lagged.
TAIL PULLEY - 6" dia. with 1-3/16" dia. shaft at bearings, machine crowned.
SNUB IDLER - Adjustable 2-1/8" dia. for tail end; 2-1/2" dia. for drive end. Pre-lubricated ball bearings. Guards included.
RETURN IDLER - Adjustable 1.9" dia. pre-lubricated ball bearings.
TAKE-UP - Take-ups at tail pulley. Provides 4" of belt take-up.
BEARINGS - Sealed, pre-lubricated, self-aligning, ball bearings on drive and tail pulleys.
MOTOR - 1 HP 115 - 1 Phase - 60 Hz. Premium Energy Efficient C-Face.
SPEED REDUCTION - Sealed worm gear C-Face speed reducer. No. 50 roller chain to drive pulley.
BELT SPEED - Constant 65 FPM.
CAPACITY - Maximum Load per Linear Foot of conveyor is 100 lbs.
Note: Floor supports are not included; please order separately.
This product is non-cancelable and non-returnable.
BED - 6-5/8" deep x 12 ga. formed steel Slider Bed is powder coat painted. Reinforced with 3/4" pipe which forms sockets for guard rails.
BELT - Ultimate 140BBS - Nitrile Belt
END DRIVE - Located on discharge end of conveyor, chain guard on left hand side.
DRIVE PULLEY - 8" dia. with 1-3/16" dia. shaft at bearings, machine crowned and fully lagged.
TAIL PULLEY - 6" dia. with 1-3/16" dia. shaft at bearings, machine crowned.
SNUB IDLER - Adjustable 2-1/8" dia. for tail end; 2-1/2" dia. for drive end. Pre-lubricated ball bearings. Guards included.
RETURN IDLER - Adjustable 1.9" dia. pre-lubricated ball bearings.
TAKE-UP - Take-ups at tail pulley. Provides 4" of belt take-up.
BEARINGS - Sealed, pre-lubricated, self-aligning, ball bearings on drive and tail pulleys.
MOTOR - 1 HP 115 - 1 Phase - 60 Hz. Premium Energy Efficient C-Face.
SPEED REDUCTION - Sealed worm gear C-Face speed reducer. No. 50 roller chain to drive pulley.
BELT SPEED - Constant 65 FPM.
CAPACITY - Maximum Load per Linear Foot of conveyor is 100 lbs.
Note: Floor supports are not included; please order separately.
This product is non-cancelable and non-returnable.
Weights & Dimensions
- Belt Width 24 in (60.96 cm)
- Drive Pulley Diameter 8 in (20.32 cm)
- Belt Length 10 ft (3.05 m)
- Length 12'1" ft
- Weight Capacity 530 lbs (240.91 kg)
- Overall Bed Width 30 in (76.2 cm)
- Weight 575 lbs (261.36 kg)
Product Details
- Voltage 115 V
- Assembly Required Unassembled
- Horsepower 1 HP
- Conveyor Speed 65 FPM
- Type Standard Conveyor
- Brand Hytrol
- Material Steel
- Manufacturers Part Number 12-1-TL30
- Conveyor Section Straight
