Price: $255.95
Customers Also Viewed

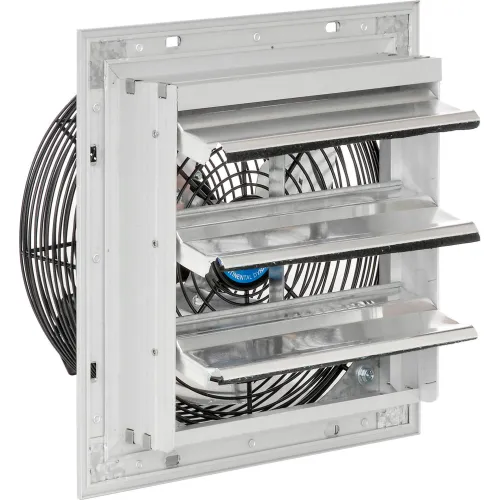

Guarded exhaust fans feature 120V, single-phase totally permanently lubricated motors with provisions for direct wiring, UL, cUL listed and conforms to UL507 standard. These shutter mounted fans install on inside wall and eliminate the need for external framing and shutter. Quiet operation makes it ideal for commercial environments. Aluminum blades are enclosed in a sturdy steel spiral wire guard. Note: Rough-in hole size is 1/2 inch (+/- 5/16) larger than fan blade size. Horsepower rating based upon maximum speed/load. The product has a limited warranty of 1 year.
Weights & Dimensions
- Width 13-1/2 in (34.29 cm)
- Depth 6-1/2 in (16.51 cm)
- Height 13-1/2 in (34.29 cm)
- Weight 11 lbs (5 kg)
- Rough Opening 10-1/2 in (26.67 cm)
- Fan Diameter 10 in (25.4 cm)
- Cord Length Not Included ft
Product Details
- Mounting Location Inside Wall
- Number of Speeds 1
- Assembly Required Yes
- Amperage 0.38 A
- RPM 1500 rpm
- Wattage 45 W
- Drive Type Direct Drive
- Material Aluminum
- RPM High 1,500 rpm
- CFM 1500 CFM
- Voltage 120 V
- Horsepower 1/30 HP
- CFM High 1500 CFM
- Housing Material Steel
- Power Cord Type Hard Wire
- Watts 45 W
- Brand CD
- Max Temperature 104° F °F
- Decibels 59
- Color Gray
Warranty
- Warranty 1 yr
Compliance & Certifications
- Certifications UL, cUL listed, OSHA & UL507 Compliant
⚌
Photo/Video Gallery
Customer Review
Most Recent Reviews
- Most Recent Reviews
- Highest Rated Reviews
- Lowest Rated Reviews
-
Reviewer: Jorge
Date: July 19, 2020
-
Reviewer: anthony
Date: May 03, 2020
Your review:
I'm very happy with the fan. As advertised it is a quality product. -
Reviewer: anthony
Date: May 02, 2020
Your review:
I'm very happy with the fan. As advertised it is a quality product. -
Reviewer: anthony
Date: May 01, 2020
Your review:
I'm very happy with the fan. As advertised it is a quality product. -
Reviewer: anthony
Date: April 30, 2020
Your review:
I'm very happy with the fan. As advertised it is a quality product. -
Reviewer: anthony
Date: April 29, 2020
Your review:
I'm very happy with the fan. As advertised it is a quality product. -
Reviewer: anthony
Date: April 28, 2020
Your review:
I'm very happy with the fan. As advertised it is a quality product. -
Reviewer: anthony
Date: April 26, 2020
Your review:
I'm very happy with the fan. As advertised it is a quality product. -
Reviewer: anthony
Date: April 25, 2020
Your review:
I'm very happy with the fan. As advertised it is a quality product. -
Reviewer: anthony
Date: April 24, 2020
Your review:
I'm very happy with the fan. As advertised it is a quality product.
Product Q & A
There are 5 questions and 4 answers for this product.
-
Can this fan be wired to a variable speed fan control
Question Asked By: David, May 19, 2020
Answer This Question
Question Answered By:
-
Product Expert, May 20, 2020
Hello David, this fan cannot be wired to a variable speed control. We recommend global model 248448A, which is the 3 speed version of this fan. Thank you for your question.
-
-
I am removing 9 glass block (24"x24" hole with glass on all sides) and looking for a ventilation fan that can be mounted to glass. Is this fan an option?
Question Asked By: Dustin, November 27, 2019
Answer This Question
-
What is the performance information in CFM at 0.0" SP?
Question Asked By: Steve, March 13, 2017
Answer This Question
Question Answered By:
-
anonymous
Hello Steve, The CFM at 0.0" SP would be 680. Thank you for your interest in our product!
-
-
Can a thermostat be safely hooked up to this fan? Also, why don't you sell one?
Question Asked By: July 30, 2012
Answer This Question
Question Answered By:
-
Product Expert, July 30, 2012
There is a thermostat on the product page listed under ¿Customers who bought this item also bought¿ that will work with the 10 inch Exhaust Fan.
-
-
Can this fan be wired to plug in to the wall?
Question Asked By: April 03, 2012
Answer This Question
Question Answered By:
-
Product Expert, April 03, 2012
NO. The fan is intended to be permanently hard wired to properly rated electrical service outlet. It can¿t be used with a plug that you can plug it in and out.
-
