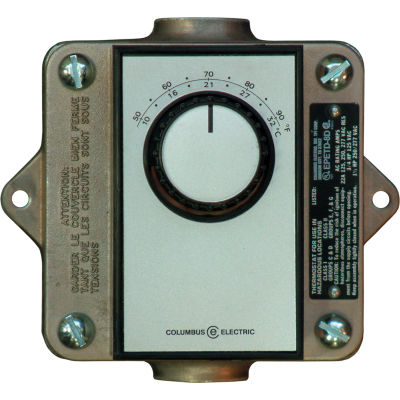

This Single Pole Double Throw Bi-Metal Unit Mounted Thermostat is for use with single phase Hazardous Location Wall Convectors. Features a plastic temperature adjustment knob and bi-metal room temperature sensor. Field installed, built-in thermostatic design. Load Rating 22A at 120-277VAC. Temperature range of 50-90° F.
LENGTH INCHES5-3/4 (14.61 cm)
WIDTH INCHES6-3/8 (16.19 cm)
HEIGHT INCHES5-23/32 (14.53 cm)
WEIGHT LBS5 (2.27 kg)
MINIMUM TEMPERATURE °F50
MAX. TEMPERATURE °F90
VOLTAGE277 / 120
STAGESHeat or Cool
CERTIFICATIONSNEMA Class Seven Div.1; Class I Group C&D; Class II Group E, F, G
